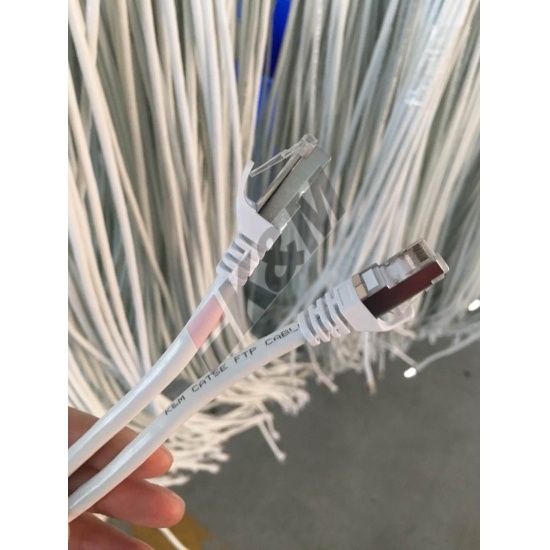

cat5e FTP Lan cable/Solid Bare Copper Cat5e Lan cable

Application:

This 4-pairs Category 5e cable is tested for power Sum NEXT, ELFEXT, Delay Skew. Propagation Delayand any other criteria as specified in the emerging standard. Application can include Voice, ISDN, ATM 155 AND 622Mbps, 100Mbps TPDDI, Fast and Gigabit Ethernet, Shielding Protects against EMR/RFI interference.

Ethernet, Shielding protects against EMI/RFI interference.



cat5e FTP Lan cable/Solid Bare Copper Cat5e Lan cable K&M

  • Product Orgin:

    ShenZhen

  • Brand:

    K&M

  • Item NO.:

    K&M cat5e-cu

  • Shipping Port:

    ShenZhen/HK

  • Payment:

    T/T

  • Price:

    $34.566/Roll

  • Market Price:

    $40

  • Price Range:

    100-500/34.566$

  • Color:

    gray

  • Lead Time:

    Two weekends
Contact Now
  • Features & Benefits

-Electrical Performance(At 100MHz)

1.0-100.0MHz impendance(ohms)100±15

1.0-100.0MHz impendance delay screw (ns/100m)<45

Pair to ground Capacitance Unbalance (PF/100M)330Max

Conductor DC resistance 20%(ohms/km)<93.8

Resistance Unbalance(%)：                   5

Test object：                                  Jacket

Test Material“：                                 PVC

Before Tensile strength(Mpa)：           ≥13.8

Aging Elongation (%)：                     ≥100

Aging Condition (C xhrs)：               100X240

After Tensile Strength (Mpa)：         ≥85%of unaged

Aging Elongation (%)：                  ≥50%of naged

Cold bend：                                   No crock



-Cable Date

Conductor：                           Solid bare copper

AWG：                                                 24

Conductor Dia(mm)：                         0.51

Insulation：                                         PE

Average thickness(±0.03mm)：          0.25

Min point thickness：                         0.22

Insulation Dia(±0.03mm)：                1.00

Twisting Lay Length(mm)：           30 undemeath

Cabling Lay Length(mm)：            200 undemeath

Jacket：                                            PVC

Average thickness(±0.03mm)：        0.50

Min point thickness：                       0.46

Outer Dia(±1.0mm)：                       5.1

Rip Cord：                                        Yes

Weight Nom(kg/km) ：                     43

Core color：                               Blue-white/blue

                                         Orange-white/Orange

                                           Green-white/Green

                                          Brown-white/Brown








Electrical performance:

Frequency(MHz)

0.772

1.0

4.0

8.0

10.0

16.0

20.0

25.0

31.25

62.5

100.0

Return Loss(dB)

19.4

20.0

21.0

24.5

25.0

25.0

25.0

24.3

23.6

21.5

20.1

Attenuation

1.8

2.0

4.1

5.8

6.5

8.2

9.3

10.4

11.7

17

22

NEXT(dB)

67

65.3

56.3

51.8

50.3

47.3

45.8

44.3

42.9

38.4

36.3

ACR(dB)

65

63.0

52.0

46.0

44.0

39.0

37.0

34.0

31.0

21.0

13.0

PSNEXT(dB)

64

62.3

53.3

48.8

47.3

44.3

42.8

41.3

39.9

35.4

32.3

ELFEXT(dB)

66

63.8

51.7

45.7

43.8

39.7

37.7

35.8

33.9

27.8

23.8

PSACR(dB)

63

60.8

48.7

42.7

40.8

36.70

34.7

32.8

30.9

24.8

20.8

Delayns/100m

575.0

570.0

552.0

546.7

546.4

543.0

542.0

541.2

540.4

438.6

537.6
