Armored Central Loose Tube Cable


KDM's Armored fiber optic cable is a central tube, loose tube product used in various outside plant applications.The addition of a corrugated steel armor under the outer jacket increase the cables crush, impact and cut-through resistance compared to non-armored

products.


Loose Tube Stranding Cable
  • Loose Tube Stranding Cable

  • Product Orgin:

    Shenzhen,China

  • Brand:

    K&M

  • Item NO.:

    KDM-lOOSE Tube Stran

  • Shipping Port:

    ShenZhen/HK

  • Payment:

    T/T

  • Price:

    $25.6/100M

  • Market Price:

    $32

  • Price Range:

    500-1000/25.6$

  • Color:

    As your requirement

  • Lead Time:

    2 Weeks after remittance
Contact Now
  • Features & Benefits

Specifications:

  • OFNG-LS Listed, CSA-FT4, IEEE1202 and UL 1685
  • Meets requirements of NFPA 130 and NFPA 502 for use in fixed guideway transit systems and road tunnels
  • ICEA S-104-696
  • CSA 22.2 No. 230 and 232
  • Fluid immersion testing per ASTM D412
  • Sunlight Resistant Jacket
  • Oil Res II compliant Jacketing System
  • Zero Halogen Per MIL PRF 85045

Features:

  • Gel-Free buffer tubes
  • Fiber Range 12-288
  • Suitable for direct burial and tray installations per UL 1277
  • Increased tensile load rating
  • 2X Crush Resistance compared to standard fiber optic cables
  • 2X Cold Impact Resistance compared to standard fiber optic cables
  • Self-supporting capability (contact factory for system design support)

Applications Network Connectivity for:

  • Service (Drop) Cables
  • Building Interconnections (Campus LAN)
  • Connectorized Trunking Cables
  • Distance Learning
  • Distribution

Temperature Specifications:

TEMPERATURE RANGE
INSTALLATION -30ºC to +70ºC
OPERATING  -40ºC to +70ºC
STORAGE -40ºC to +75ºC

Mechanical:

Parameter  Value
Crush  440N/CM
Cold Impact 8.8 N*m
Tensile
Installation 		1,000 lbs (4,450N)
Operational 400 lbs (1,780N）

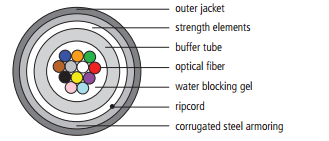

Cable Components:

Fiber Specification:

Fiber Type ISO/IEC/ITU Maxmum Attenuation
(DB/KM) 		Overfill Launch Min.Bandwidth(MHz•km) Gigabit Ethernet Min.
Link Distance (meters)
850NM 1300NM 1310NM 1550NM 850NM 1300NM 850NM 1300NM
(6) 62.5/125 GIGA-Link™ 300 OM1 3.5 1.2 N/A N/A 200 600 300 550
(5) 50/125 GIGA-Link™ 600 OM2 2.9 0.9 N/A N/A 500 500 600 600
(L) 50/125 Laser-Link 300 OM3 2.9 0.9 N/A N/A 1500 500 900 550
(9) Single-mode G.652.D & G.657. A1 N/A N/A 0.35 0.25 N/A N/A N/A 5000
(K) SM Futureguide SR-15e
 Bend Insensitive 		G.655 N/A N/A N/A 0.25 N/A N/A N/A N/A

Gigabit Ethernet Minimum Link Distances are based on "bandwidth"/modal dispersion constraints. Actual link distances may be constrained by attenuation, depending on specific loss budget.


Ordering Information:

Fibe
Fiber Count Nominal Diameter Nominal Weight Maxmum Tensile Load Minimum Bend Radius
LBS(N) Inches(CM)
Inches LBS/1,000FT Short Term Long Term Short Term Long Term
2 0.48(12.2) 95(140) 600(2670) 200 (890) 9.6 (25.0) 4.8 (13.0)
4
6
8
10
12


Note: Diameter and weight subject to change without notice

Fiber Types – Replace asterisk, in AFL number with number in the Fiber Specifications table above.
