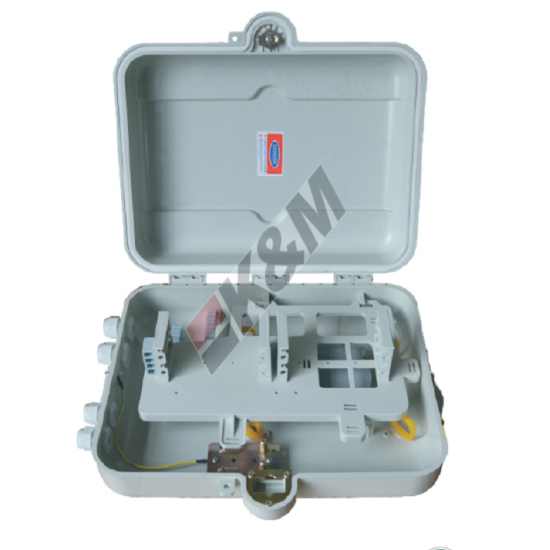

32 core Fiber Access Terminal

32 fiber termination box
  • 32 fiber termination box
  • 32 fiber termination box
  • Product Orgin:

    Shenzhen
  • Brand:

    K&M
  • Item NO.:

    KDMFAT32
  • Shipping Port:

    Shenzhen/HK
  • Payment:

    TT
  • Color:

    Gray
  • Lead Time:

    2 weeks
Contact Now
  • Features & Benefits



FIBER DISTRIBUTION HUB – MODULE TYPE

 Fiber Distribution Hub (FDH) – Module Type is suitable for use in the network where optical splitters are distributed. It offers optical cable stripping and a fixing assembly, optical splitter module, splicing module, and storage area, completes the functions of optical cable inlet fixing, fiber splicing and termination, optical splitter installation management, and coiling, storage, fixing, and splicing of single-fiber drop cables, and implements optical splitting and capacity expansion of optical lines

 Features

·        Material: nonmetal

·        Integrated optical splitter – Module type

·        Rotary distribution panel

·        Cable management

·        Applicable in multiple cables: drop cable, optical cable

·        Perfect fiber route design to ensure bend radius of fibers

·        Backbone optical cable is tap-off

·        Dust and splash proof: IP65(Outdoor)

 Applications

·        FTTX Systems

·        PON Networks

·        CATV Links

·        Optical Signal Distribution

 Specification

Number of PLC splitters: 2 x16(SC)

Fiber capacity 32 fibers maximum

IP rating: IP65

Operating temperature -20°C to + 60ºC

Storage temperature -50°C to + 70ºC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

Description

Dimension (H x W x D mm)

32 Ports/Fibers

425 x 345x 125





Ordering Information

FDH with PLC Splitter

Description

Part No.

Fiber Distribution Hub with PLC Splitter Module type

KMFDHMSxyyaaSCzn





x: Number of splitter inputs

yy: Number of output channels

aa: Number of fibers (8 to 64)

z: Connector surface type (U=UPC, A=APC)

n: Fiber type (A=G657A, D=G652D)

 Ordering Sample: KMFDHMS13216SCAD (FDH, with PLC Splitter 1:32, up to 16 ports, SC connector, APC, G652D)
