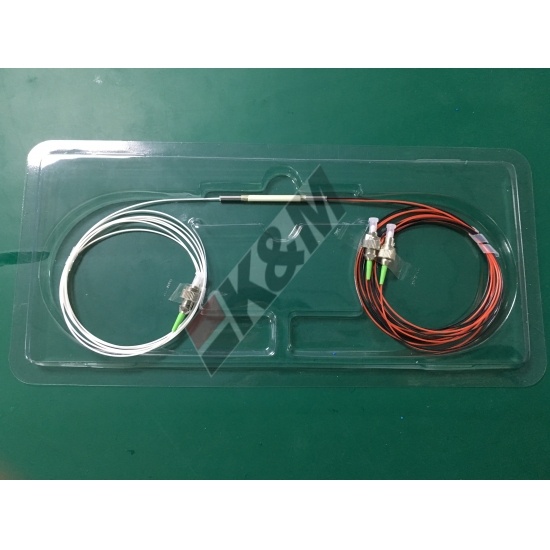

1X2 FC APC ​FBT Splitter, Singlemode Dual Window, 900µm Loose-tube Fiber

1X2 FBT Splitter ,Singlemode 900μm fiber, 1310 and 1550nm wavelength, fit for indoor/outdoor fiber terminal device

1x2 Singlemode Dual Window Loose Tube FBT Coupler 900um Fiber Splitter
  • 1x2 Singlemode Dual Window Loose Tube FBT Coupler 900um Fiber Splitter
  • 1x2 Singlemode Dual Window Loose Tube FBT Coupler 900um Fiber Splitter

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFBT-SM-FC1X2

  • Shipping Port:

    shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $6/Pcs

  • Market Price:

    $7.5

  • Price Range:

    500-1000/6$

  • Color:

    Optional

  • Lead Time:

    7 days
Contact Now
  • Features & Benefits

1X2 FC APC FBT Splitter, Singlemode Dual Window, 900µm Loose-tube Fiber

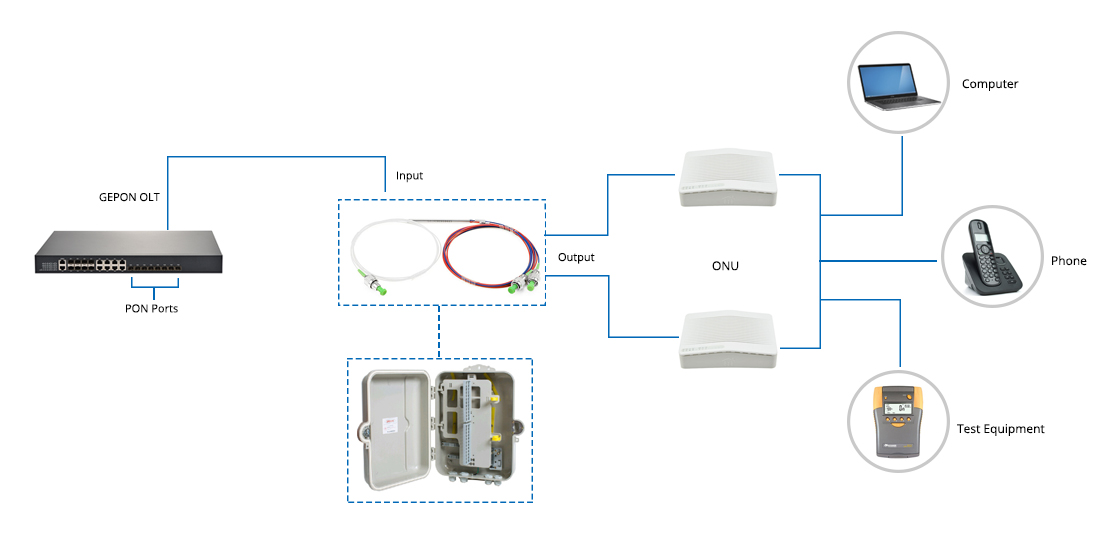

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor). Because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss, they are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.

Product Type FBT Coupler Port Configuration 1x2
Grade Type A Fiber Type Single-mode
Connector Type SC/APC Input/Output Cable 900μm loose tube
Wavelength 1310nm and 1550nm Band width ±15nm
Split Ratio 50/50 Fiber Length 1m or Customized
Return Loss 55dB Typical Excess Loss 0.01dB(P) / 0.15dB(A)
Packing Type Steel Tube Operating Temperature -40℃~ +85 ℃

Key Features

  • High Return Loss
  • Steel tube-compact size
  • Wide Operating Temperature and Wavelength
  • Excellent Environmental & Mechanical Stability
  • Low insertion loss and polarization dependent loss
  • Qualified Under Telcordia GR-1221 and GR-1209
  • Optional Split Ratio 20/80, 40/60...(50/50 as default)
  • Compact for small application areas like in closure or splice trays

Application

K&M provides uniquely low excess loss, along with low polarisation and temperature dependence for all ports. These high performance parts are available in a wide variety of split ratios, housing and connector options and can therefore be readily specified in a wide variety of applications, like FTTx, Passive Optical Networks (PON), Local Area Networks (LAN), Test Equipments etc.
