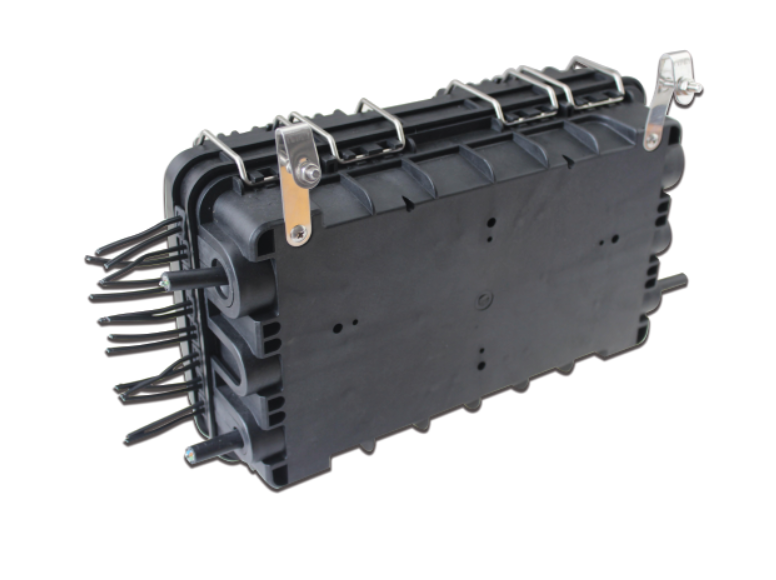

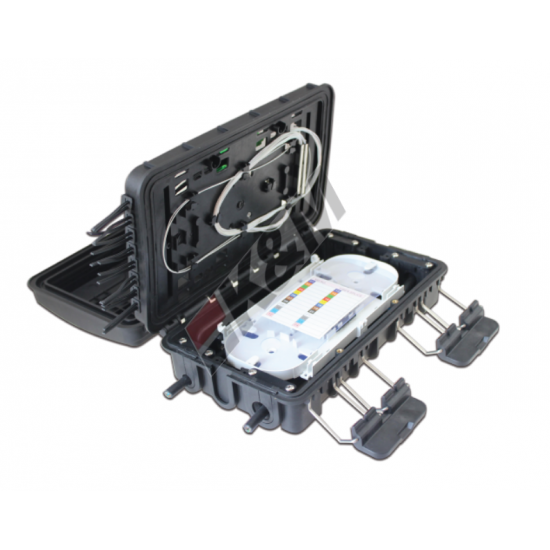

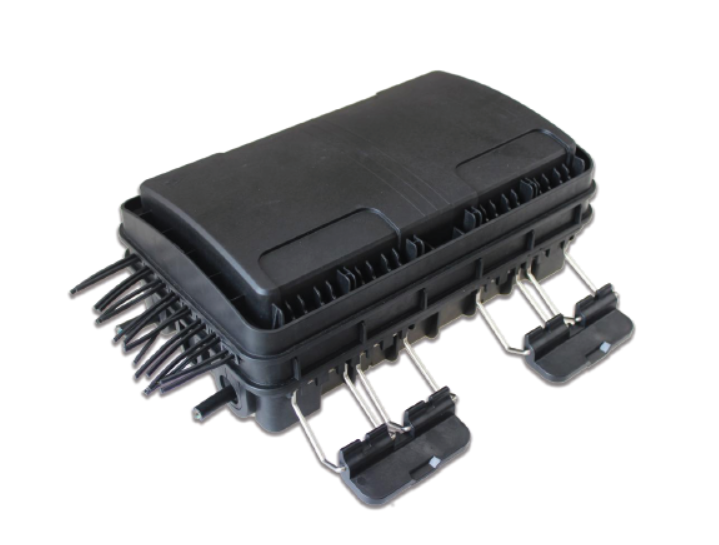

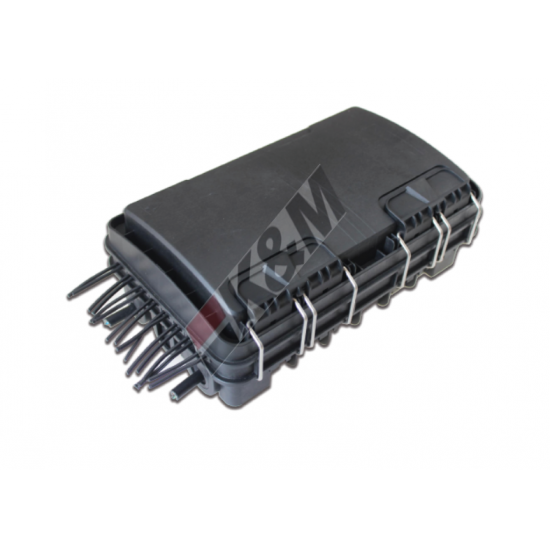

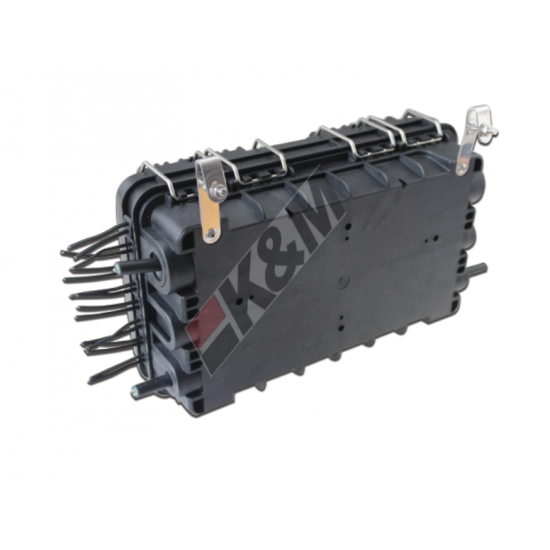

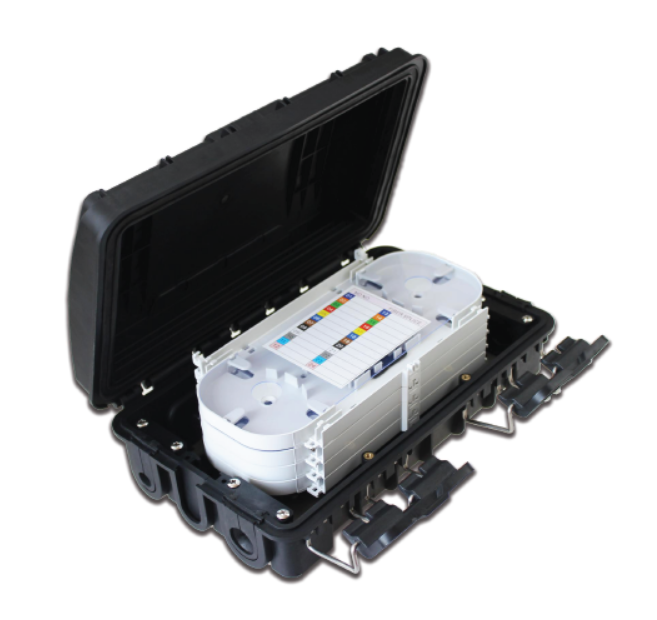

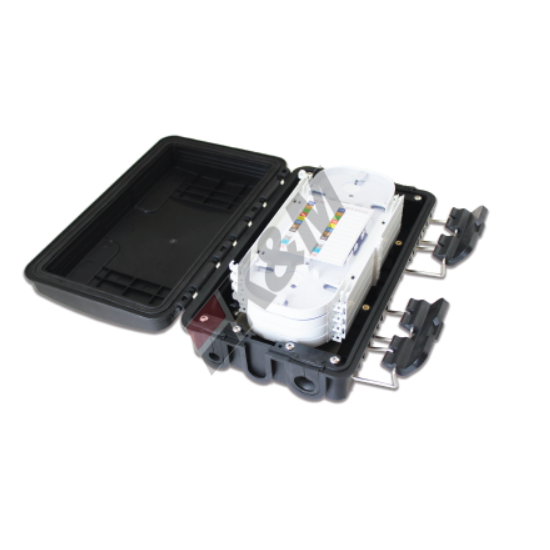

China FTTH box 24 cores with splitter

Fiber Access Terminal (FAT) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box integrates mechanical splicing, splicing and distribution of fiber and splitting in one, use for FTTH network

Fiber optic splitter modular box
  • Fiber optic splitter modular box
  • Fiber optic splitter modular box
  • Fiber optic splitter modular box
  • Fiber optic splitter modular box
  • Fiber optic splitter modular box
  • Fiber optic splitter modular box

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFAT002A

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Color:

    Gray

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits



Fiber Access Terminal Closure



Fiber Access Terminal (FAT) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box integrates mechanical splicing, splicing and distribution of fiber and splitting in one, use for FTTH network



Features

  • Indoor/Outdoor type
  • High quality impact resistant plastic PP+GF
  • Compacted wall mount type
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access that can be re-opened
  • Low cost solution with high protection for the terminated fibers
  • IP65 rated for outdoor applications
  • Customized design product is available upon request

  Applications

  • FTTX Systems
  • PON Networks
  • Fiber Optic Termination
  • CATV

 Specification

  • Wall Mounted termination box for indoor/outdoor use

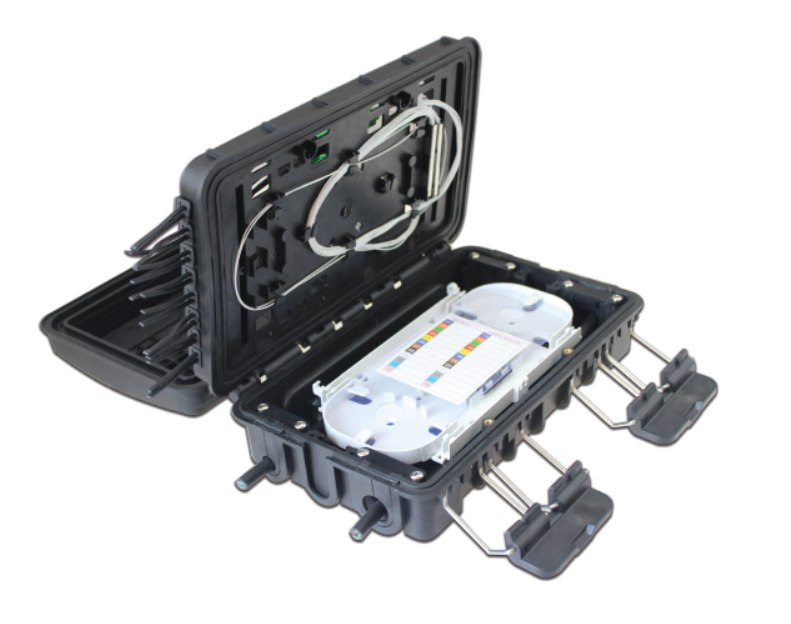

  • Up to 16  Fiber capacity SC simplex with 4 pcs splice tray

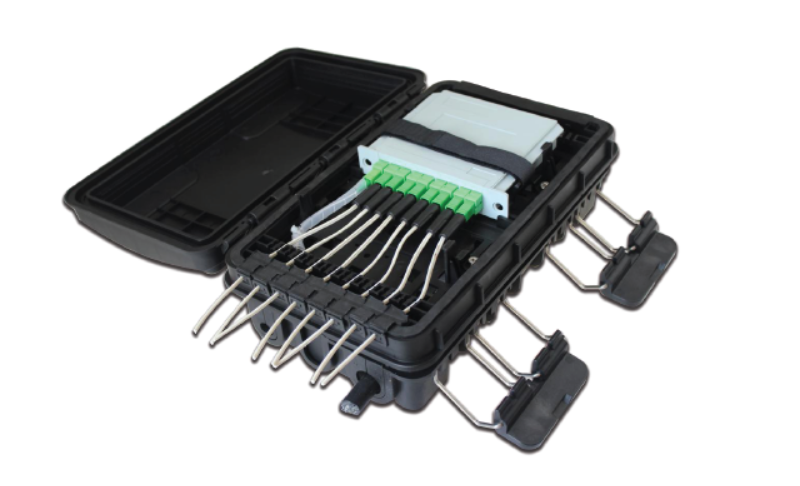

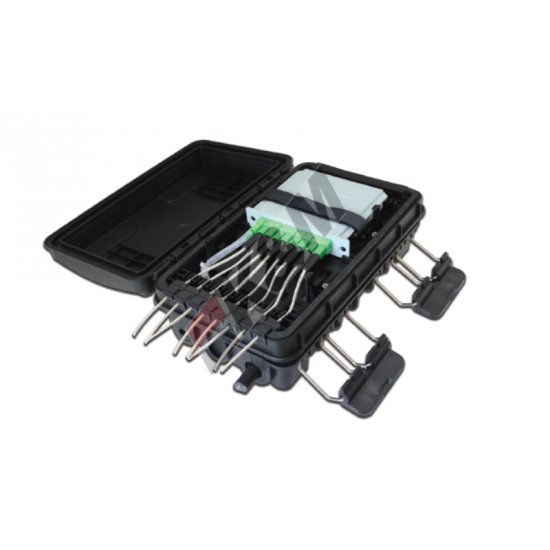

  • Available install 1x8 Mini type PLC Splitters 2 pcs or two 1*8 PLC Splitter LGX modular
  • 2 entry for round ports(8-20mm),4pcs 5-16mm round cable and output 16 drop cable(3-7mm)

 Dimensions

KDMFAT-002A

KDMFAT-002B

KDMFAT-002C

285x175x110mm

285x175x110mm

285x175x90mm

Max.24Cores SC simplex

Max.96 cores SC simplex, with 4 pcs splice tray

1x8 Mini type PLC Splitters 2 pcs

2pcs 1*8 PLC Splitter LGX modular

  N/A

In: 2-port (¢8-20mm) 4pcs (¢5-16mm) round cable/Out: 16-port (¢3-7mm)

In: 2-port (¢8-20mm)/Out: 16-port (¢3-7mm)

Black

Plastic: PP+GF

Wall /Pole Type Outdoor



Order information

Ordering code

Model

Max.Capacity

(splicing/terminal)

Dimension (HxWxD)(mm)

Remark

210309624

KDMFAT-002A/B

24Cores (SC SX adapter 16PCS)

PLC 1X8 Mini type 2pcs or LGX splitter 2 pcs 1*8



285x175x110mm

Outdoor

210309696

KDMFAT-002C

Max: 96 cores, 4 splice tray

285x175x90mm

Outdoo
