Fiber Optic Splice Dome Closure 144Core


144 fiber Dome type Splice Closure 8 holes
  • 144 fiber Dome type Splice Closure 8 holes
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDM-FDC-144-9holes
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    TT/WU
  • Price:

    $30/Pcs
  • Market Price:

    $42
  • Price Range:

    100-500/30$
  • Color:

    Black
  • Lead Time:

    7-14 days
Contact Now
  • Features & Benefits

GJS-SPM004 Dome style fiber splices closure

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable, splicing of low-capacity single-fiberlead-out and fixation of multi-fiber access cables

 Technical specifications

Compliance with YD 814.1-2004 and YD 814.2-2005

 Physical performance

   Complete bend radius control, the bend radius >30mm

   Flammability: GB5169.7 Experiment A

   Ambient condition

   Operating temperature:                               -40℃~+65 ℃

   Relative humidity:                                        ≦ 85% +30℃

   Atmospheric pressure:                               70~106kP

   Storage temperature:                                 -25℃~+60 ℃

   Voltage Strength:   under 15KV direct current, without breakdown or flashover phenomenon.

   Insulation Resistance:                                  ≥2×104MΩ

   Tensile Force:                                        ≥800N

   Leakproofness: inflate the closure, making internal pressure to 100Kpathen put the closure into the water over 15min, without any bubbles or pressure drop happened.

   Impact Strength: can bear 16N.m.after 3 impact times; there is no crack on the body.

 Features:

   Installation modes: overhead-mountedburry-mountedwall-mountedpole-mounted, manhole-mounted;

   Aging-resistant plastic, and corrosion-resistant metalworking subassemblies

   The body adopts modified PP, which is high strength and corrosion resistance, has longer lifetime and excellent sealing performance.

   It has 9 cable ports in total, 8 Φ15mm round cable ports, and 1 oval port which can let in and out pc Φ 38mm cable or 2 pcs Φ 15mm cables, as well as for few small size cables at the same time.

   Fast and easy sealing of closure body and optical cable openings

   Perfect optical route design to ensure bend radius of fiberslarge fiber storage area

   Optical splice trayapplicable to ribbon and bundle cablerandom configuration under the maximum capacity

   Large storage space for splice tray with greater than 90°overturn angeleasy for maintenance and expansion

   Configurable with grounding device and valve

   Service life not less than 20 years

   IP degree:                            IP68

   Size DxH:                               Ф210mmx470mm

   Weight:                                 2.2Kg

   Oval port diameter:                 Φ38mm; round port diameter: Φ15mm

   Max capacity:                         144cores, 6pcs 24c splice tray.

   Assembled with valve core and grounding device.

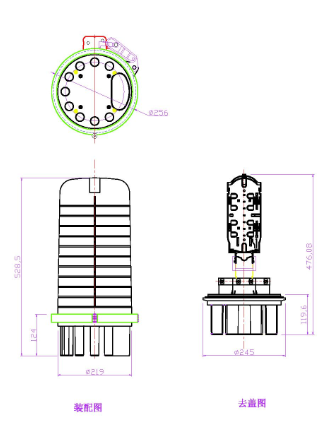

 Design drawing

Packing List:

Dome closure:                        1set

Hanging set:                          1set (optional: pole mounting, wall mounting or aerial)

Heat shrinkable tube:              2~144pcs (according to the real capacity of the closure)

Hose clamp13~19:                 8pcs

Shrinkable tube65/19-150:      1pc

Shrinkable tube28/6-150:      6pc

Manual:                                 1pc

Certificate of Approval:            1pc

Ordering information:

Product Name

Ordering code

Model

Dimension

Splice capacity

(fiber)

Cable Inlet

Remarks

Bundle

Domefiber splice closure



Body

0801008800

GJS-SPM004

Ф210x470mm

144

4-inlet

4-outlet

Inlet cable diameter:

Ф15-Ф38

4 RJ-J201 (single)/ 4 RJ-J202(single)/

Splice stry

080103040

RJ-J202

\

24

\

\
