Normally used to connect two fiber optic cables with APC (angle polish) SC (male) connectors.
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMAD-SCAM-LCUM-SM-SShipping Port:
Shenzhen/hkPayment:
TT/WUPrice:
$4/PcsMarket Price:
$4.5Price Range:
100-1000/4$Color:
As PictureLead Time:
7-15 days

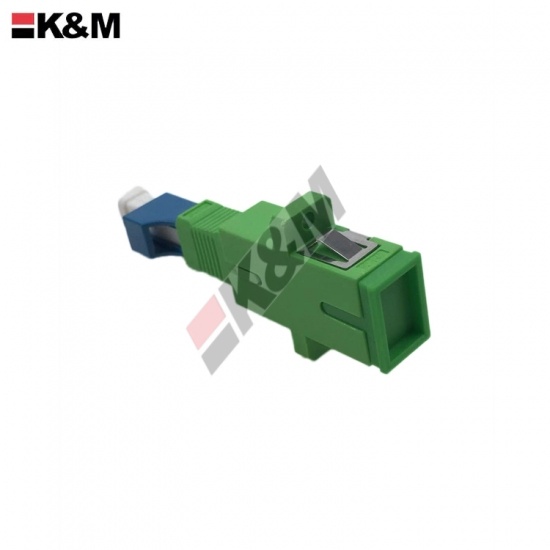

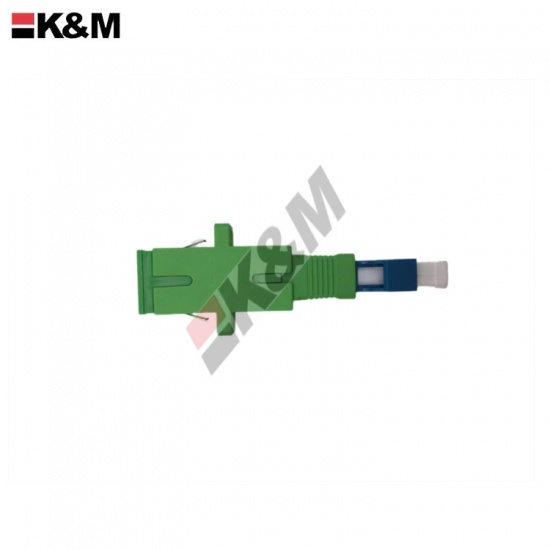

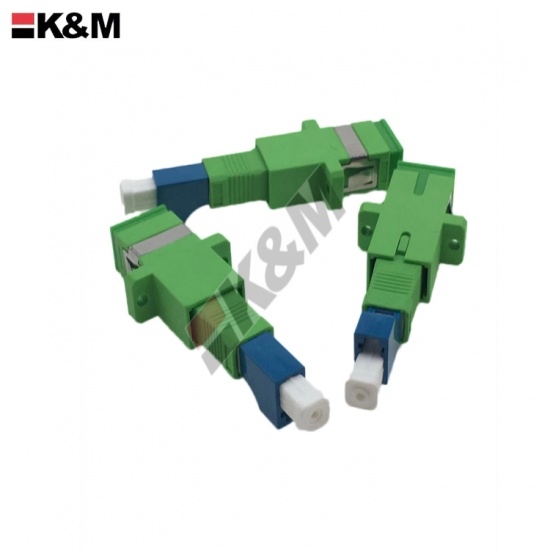

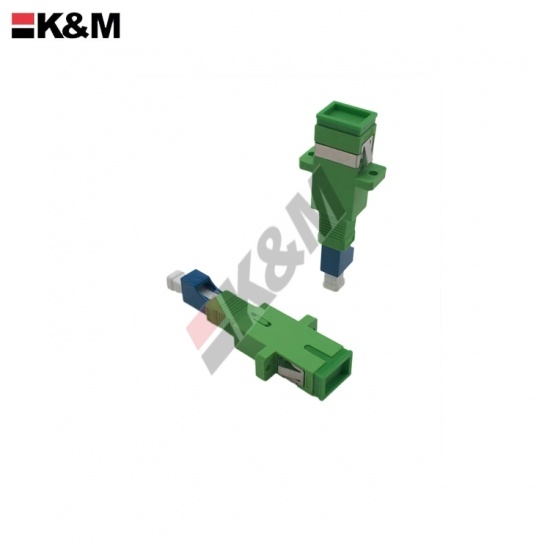

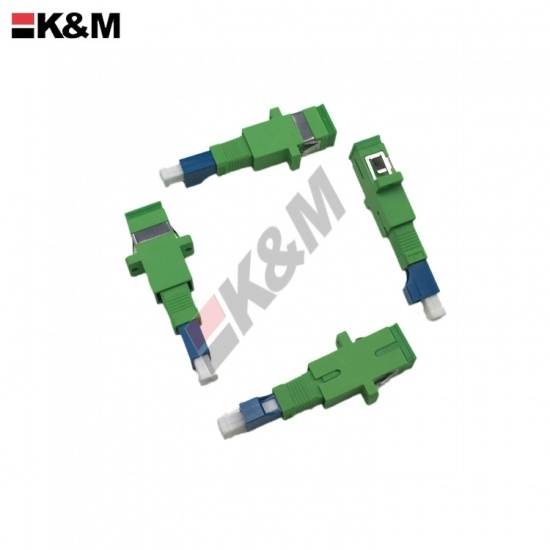

SC/APC female to LC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Key Features:
ST style to ST style
lower insertion loss
Use in Singlemode or Multimode applications.
Free-hanging or panel-mount design.
Dust caps protect against debris and contamination
RoHS Compliant
Functions:
A cable to cable fiber optic connection
Cable to equipment fiber optic connection
Specifications:
Material: Copper
Connectors: SC/APC (female) to LC/PC (female)
Body material: Polymer
Mounting: Free standing or bulkhead, SC footprint hole (13.2mm x 9.7mm, 0.52in x 0.38in)
Alignment sleeve material: Zirconia Ceramic
Channels: Simplex
Precision: Singlemode
Color: Green
Insertion Loss (IL): <0.2dB
Durability: <0.1dB change after 500 matings
Operating Temperature: -4 ℃ to +75 ℃
Description & technical parameter of Fiber Optic Adapter:
Product |
Adapter |
|
Mode |
S.M |
M.M |
Insertion Loss |
≤0.2dB |
≤0.3dB |
Mating Durability(1000times) |
Additional Loss≤0.1dB,Return Loss Variability 5dB |
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability 5dB |
|
Operating Temperature |
-40°C~ +85°C |
|
Storage Temperature |
-40°C~ +85°C |
Adapter type |
FC, SC, ST, LC, MU, MTRJ, E2000, D4 and hybrid: FC-SC, FC-ST, SC-ST, SC-LC, LC-ST,SC-SC, LC-LC, E2000-FC, E2000-SC |
Mode type |
Singlemode, Multimode or APC |
Fiber count |
Simplex,Duplex or Four cores |
Sleeve |
Ceramic/Zirconia sleeve,made in China or Japan |
Housing color |
Standard(Blue/Beige/Green) or OEM color, with or without flange available |

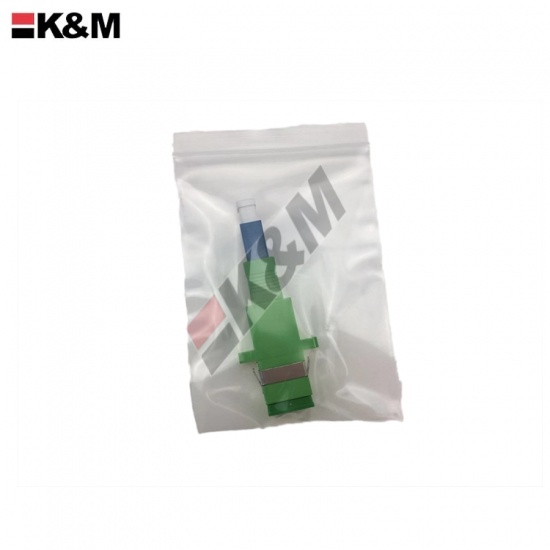

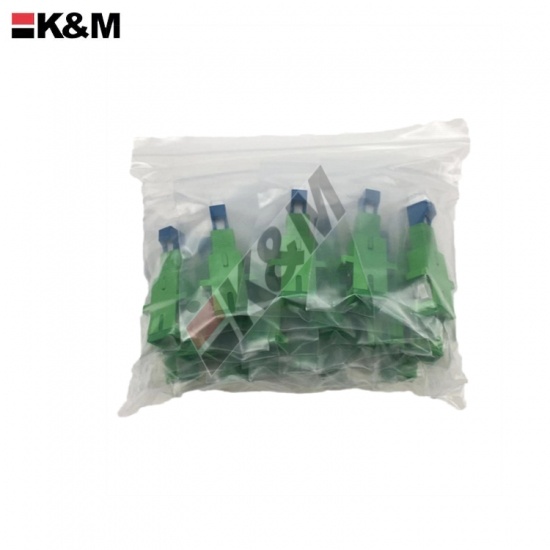

Packing |
Normally polybag+carton box, can be customized |
Our advantage and special services:
