Product Orgin:
ShenzhenBrand:
K&MItem NO.:
KDMGYTA2-144Shipping Port:
Shenzhen/HongKongPayment:
T/T,L/C,Wester Union,PaypalLead Time:
1-2 weeks

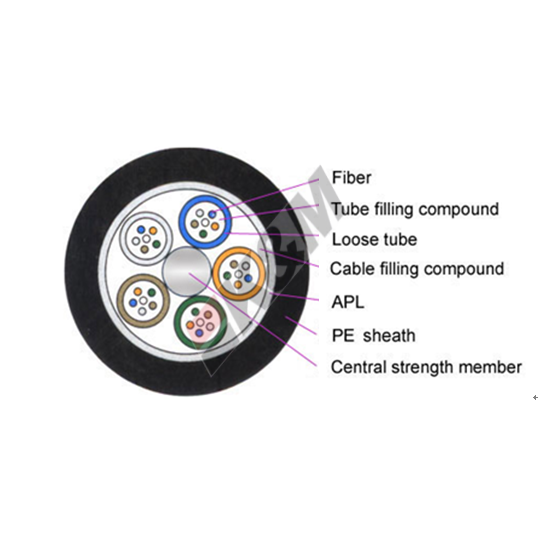

Armored Optic Cable GYTA
1.TECHNICAL SPECIFICATION
Fiber count |
2~30 |
32~36 |
38~60 |
62~72 |
74~84 |
|
Loose Tube |
OD(mm): |
1.5±0.1 |
1.5±0.1 |
1.8±0.1 |
1.8±0.1 |
1.8±0.1 |
Material: |
PBT |
|||||
Max fiber count/tube |
6 |
6 |
12 |
12 |
12 |
|
Core unit |
5 |
6 |
5 |
6 |
7 |
|
Steel/Coating(mm) |
1.2 |
1.5 |
1.4 |
1.8 |
1.8/2.5 |
|
Water Block Material: |
Water blocking Compound |
|||||
Armored |
Aluminum tape |
|||||
Sheath |
Thickness: |
Non. 1.5mm |
||||
Material: |
PE |
|||||
OD of cable (mm) |
8.0 |
8.3 |
8.8 |
9.2 |
9.9 |
|
Net weight ( kg/km) |
70 |
77 |
75 |
95 |
104 |
|
Fiber count |
86~96 |
98~108 |
110~120 |
122~132 |
134~144 |
|
Loose Tube |
OD(mm): |
1.8±0.1 |
1.8±0.1 |
1.8±0.1 |
1.8±0.1 |
1.8±0.1 |
Material: |
PBT |
|||||
Max fiber count/tube |
12 |
12 |
12 |
12 |
12 |
|
Core unit |
8 |
9 |
10 |
11 |
12 |
|
Steel/Coating(mm) |
1.8/3.0 |
1.8/3.6 |
1.8/4.2 |
1.8/4.8 |
1.8/5.4 |
|
Water Block Material: |
Water blocking Compound |
|||||
Armored |
Aluminum tape |
|||||
Sheath |
Thickness: |
Non. 1.5mm |
||||
Material: |
PE |
|||||
OD of cable (mm) |
10.4 |
11.0 |
11.6 |
12.2 |
12.8 |
|
Net weight ( kg/km) |
114 |
125 |
137 |
148 |
160 |
2. FIBER AND LOOSE BUFFER TUBE IDENTIFICATION
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Tube Color |
Blue |
Orange |
Green |
Brown |
Slate |
White |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Fiber Color |
Blue |
Orange |
Green |
Brown |
Slate |
natural |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
3.Production Line
