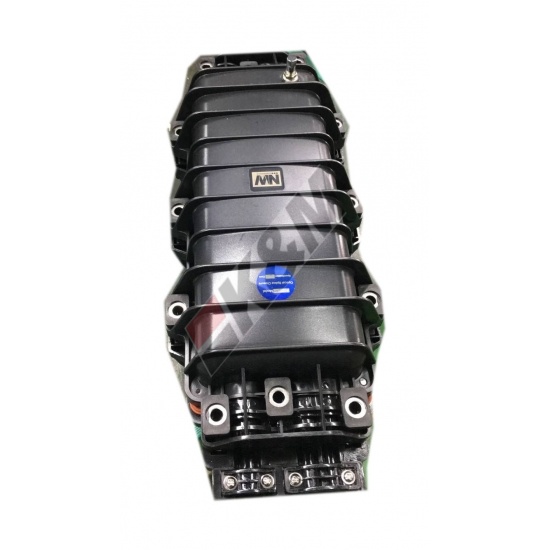

Horizontal Fiber Optic Splice Closure 144 cores

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables

Inline fiber optic splice closure 144 cores
  • Inline fiber optic splice closure 144 cores
  • Inline fiber optic splice closure 144 cores

  • Product Orgin:

    Shenzhen

  • Brand:

    K&M

  • Item NO.:

    KDMGJS-H009

  • Shipping Port:

    Shenzhen or HongKong

  • Payment:

    TT,LC,PayPal,Wester Union

  • Color:

    Black

  • Lead Time:

    7-12 days
Contact Now
  • Features & Benefits

KDMGJS-H009 Horizontal Fiber Optic Splice Closure (FOSC)

 The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables。

  Technical specifications

Compliance with YD 814.1-2004 and YD 814.2-2005

 Physical performance

Complete bend radius control， the bend radius >30mm

Flammability: GB5169.7 Experiment A

Ambient condition

Operating temperature: -40℃~+60 ℃

Relative humidity: ≦ 85% （+30℃）

Atmospheric pressure： 70~106kP

Storage temperature: -40℃~+65℃

 Dimension and Capacity

Outside dimension (LxWxH)

470x180x125 (mm)

Weight (excluding outside box)

2500g-2825g

Number of inlet/outlet ports

3 (pieces) on each side (total 6 pieces)

Diameter of fiber cable

Φ8—Φ20 (mm)

Capacity of FOSC

Bunchy: 12—96 (Cores)

Ribbon: max. 144(Cores)

 Main components

No.

Name of components

Quantity

Usage

Remarks

1

Housing

1 set

Protecting fiber cable splices in whole

Internal diameter:

430x180x63(mm)

2

Fiber optic splice tray

(FOST)

max. 6 pcs (bunchy)

max. 4pcs  (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:12,24(cores) Ribbon:3 (pieces)

3

Foundation

1 set

Fixing reinforced core of fiber- cable and FOST



4

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom



5

Port plug

6 pieces

Sealing empty ports



6

Pressure

testing valve

1 set

After injecting air, it is used for pressure testing and sealing testing

Configuration as per requirement

7

Earthing deriving device

1 set

Deriving metallic components of fiber cable in FOSC for earthing connection

Configuration as per requirement








Ordering information

Product Name

Ordering code

Model

Dimension

Splice capacity

(Fiber)

Cable Inlet

Remarks

Bundle/Ribbon

Horizontal fiber splice closure



Body

080103800

KDMGJS-H009

470x180x125 (mm)

144

3-inlet

3-outlet

Inlet cable diameter:

Ф8-Ф20



Splices tray

080103040

RJ-J202

\

24

\

Max. 6 pcs (bunchy)



Splices tray

080103790

RJ-J215

\

24(

\

\

Splices tray

080103800

RJ-J216

\

24(4-fiber ribbon)

\

Max. 4pcs (ribbon)
