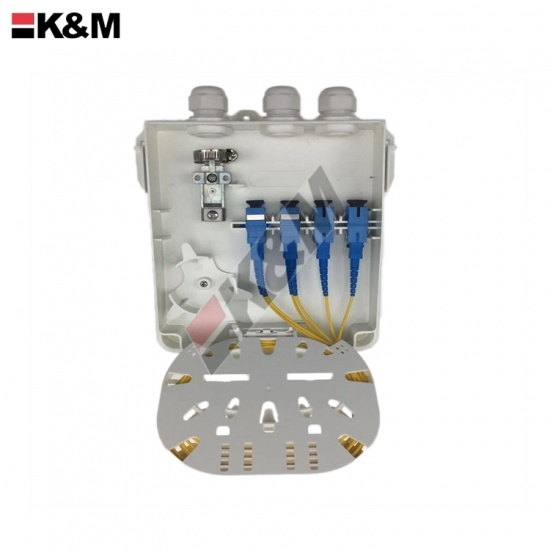

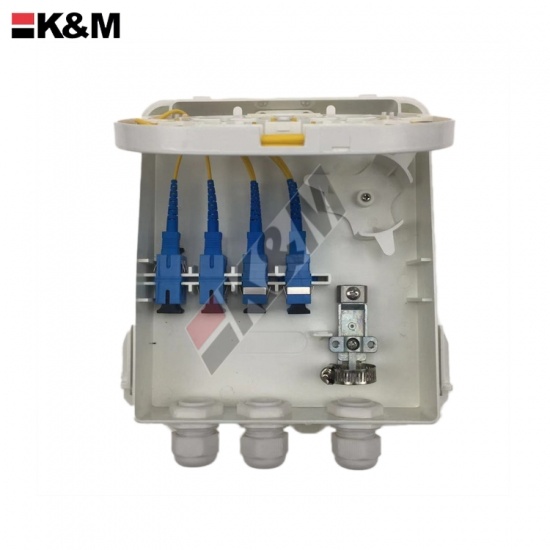

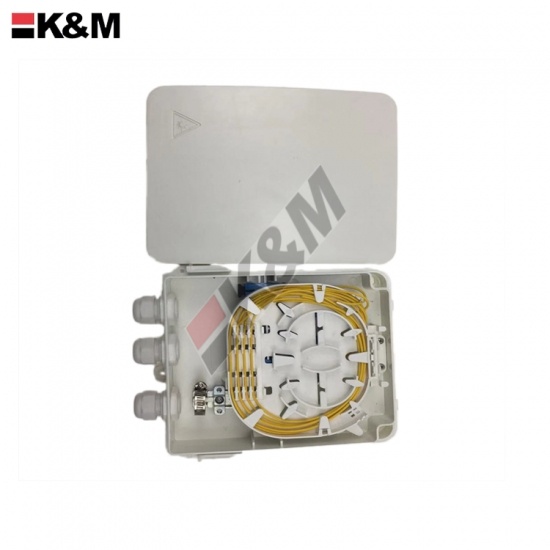

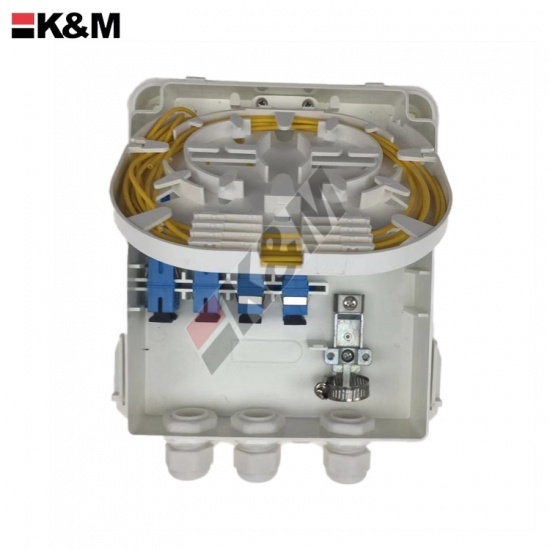

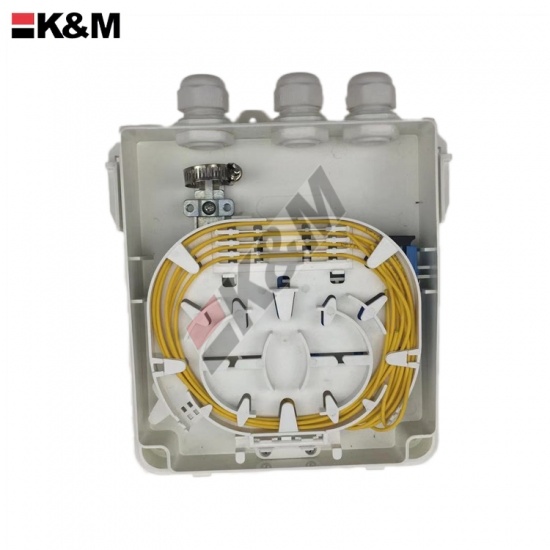

FTTH Fiber optic termination box Simplex SC 8Ports

K&M's Fiber Termination Box(FTB) is mounted to in&out side wall of building or pole to distribute and connect  optical cable for distribution of subscriber

FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • FTTH Fiber optic termination box 8Ports SC SX
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDMFTB-SX-SC-8C
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    TT/WU
  • Color:

    Gray
  • Lead Time:

    As per Qty
Contact Now
  • Features & Benefits


FIBER OPTIC TERMINATION BOX

Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

  • Indoor/Outdoor type

  • Nonmetallic material

  • Compacted wall mount type

  • Simple and clearly arranged incoming and outgoing cable management

  • Higher fiber count capacity box is available upon request

  • Easy maintenance ,easy access with front door

  • Support both mechanical and fusion splicing

  • Low cost solution with high protection for the terminated fibers

  • IP55 rated for outdoor applications

  • Customized design product is available upon request

  Applications

  • FTTX Systems

  • PON Networks

  • Fiber Optic Termination

  • CATV

 Specification

  • Wall Mounted termination box for indoor/ourdoor use
  • Up to 8 Fiber capacity  SC Simplex

  • Available for SC Adaptors

 Dimensions


Description FTB-
Dimensions(LxWxH) 199x160x46mm
Splice Capacity Max.8 Cores
Cable Port In:2-port/Out:1-ports
Color  Ivory/White
Main Body Material Plastic   ABS+PC
Installation Type Wall /Pole Type  Outdoor
