Fiber Access Terminal Hub for deop cable

The fiber access termination hub is able to hold up to 16-24 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

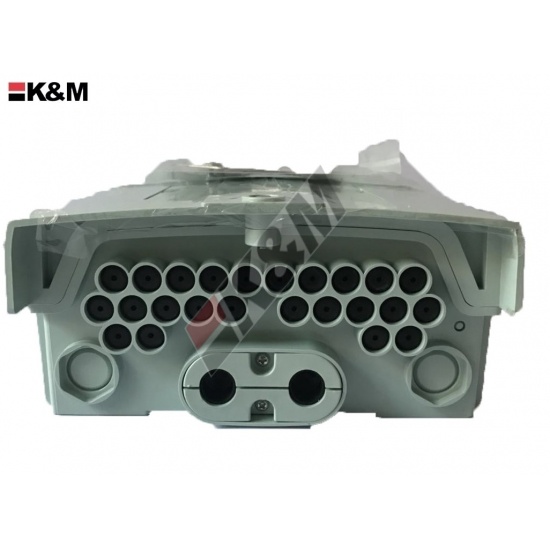

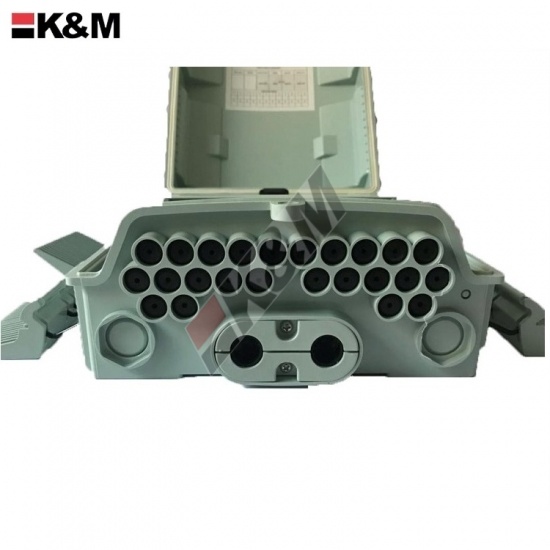

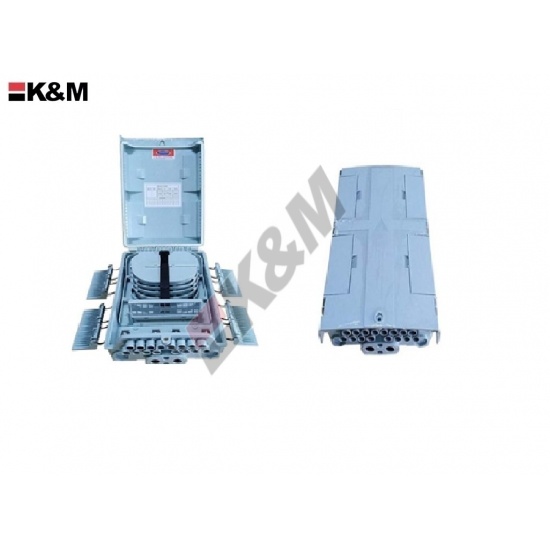

Fiber optic termination box for drop cable
  • Fiber optic termination box for drop cable
  • Fiber optic termination box for drop cable
  • Fiber optic termination box for drop cable
  • Fiber optic termination box for drop cable

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFAT24C

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Color:

    Gray

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

Fiber Access Terminal Hub



The fiber access termination hub is able to hold up to 16-24 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



  Features

  • n  ·Water-proof design with IP-65 Protection Level.
  • n  ·Integrated with flap-up splice cassette and adaptor holder
  • n  ·All stainless metal plate and anti-rusting bolts, nuts
  • n  ·Fiber bend radius control more than 40mm
  • n  ·Suitable for the fusion splicer or mechanical splice
  • n  ·2/3Pcs of 1*8 Splitter can be installed as an option
  • n  ·Mechanical sealing structure and mid-span cable entry.
  • n  ·16/24 ports cable entrance for drop cable
  • n  ·16/24 adapter for drop cable patching



Applications

n  ·Wall mounting and pole mounting installation

n  ·FTTH pre-installation and filed installation

n  ·2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable


Standard Accessories

n  Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance



Product Information

Name

Model

Dimension

Max. Capacity

(fibers)

Remarks

L × W × H (mm)

Termination

Splice  (backbone/ branch)

Fiber Access Terminal

FAT-16CSC

340 × 220 × 95

16

16 / 16

2pc of 1*8 PLC Splitter

 Max:Splice 96 Fibers

(4trays, 24 fiber/tray

FAT-24CSC

340 × 220 × 95

24

24 / 24

3pc of 1*8 PLC Splitter

Max:Splice 96 Fibers

(4trays, 24 fiber/tray)
